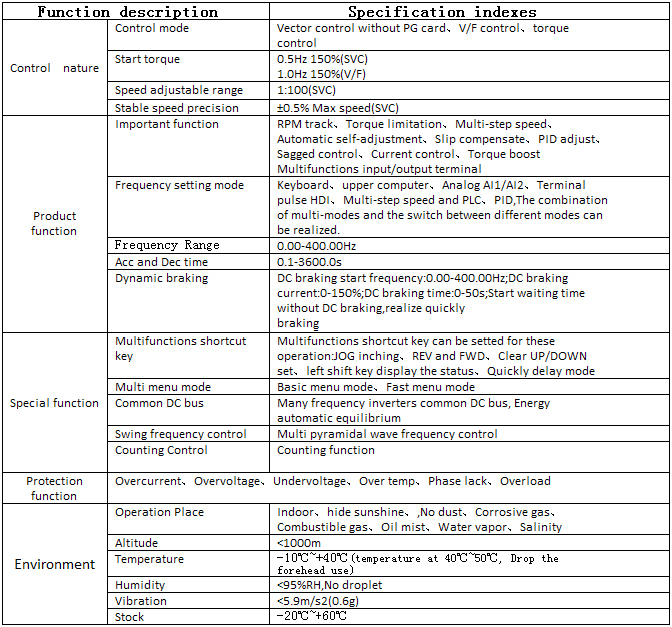

3100 series inverter adopt to vector control without PG card, V/F control, torque control.It has stable performance, it can be applied to machine tool, water supply, centrifugal machine. And we combined with relevant application features, improve its reliability and optimal design, the product can satisfy the requirements for various applications
